Slick aluminum nose, high strength
Flow ports offer 360° flow area
Fitted with high flow phenolic float valve according to API test procedures
Meet API 10F Cat IIIC
PDC drillable
Concentric or other nose options available
Up / Down jet side ports
Standard 5,000 PSI & 10,000 PSI valves
Single, double & auto-fill valve options
Ball catcher option available
All material casing grades available
Size range is 4 1/2” - 20”

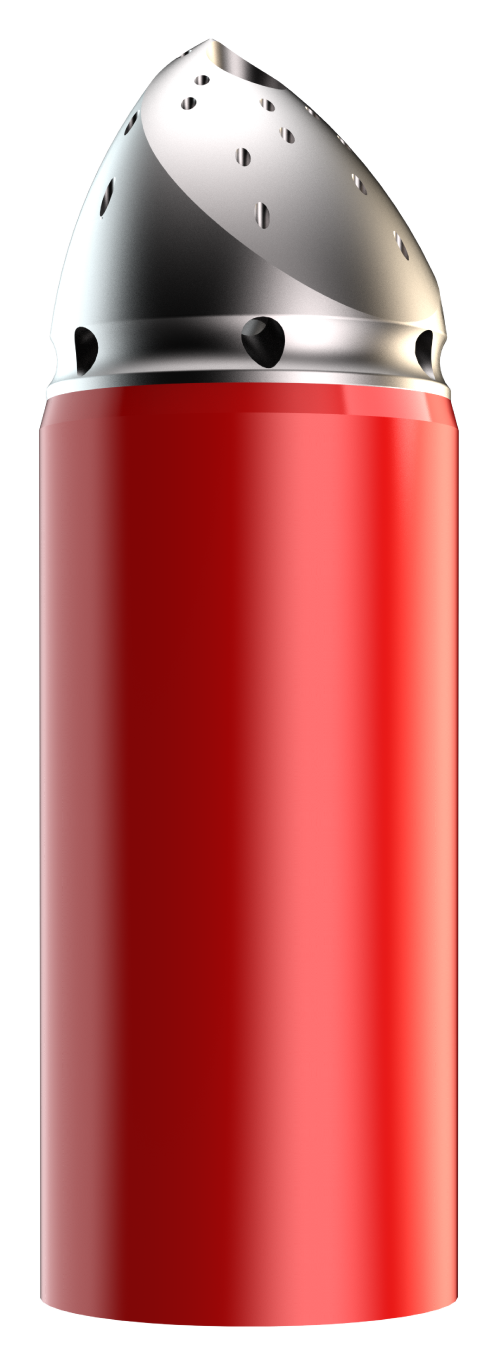

The guide shoe has a slick aluminum nose and is filled with premium cement. It is designed to help the casing, liner, and screen run smoothly. It can be used in difficult wellbore conditions. The material used for the guide shoe is seamless casing grade steel.
